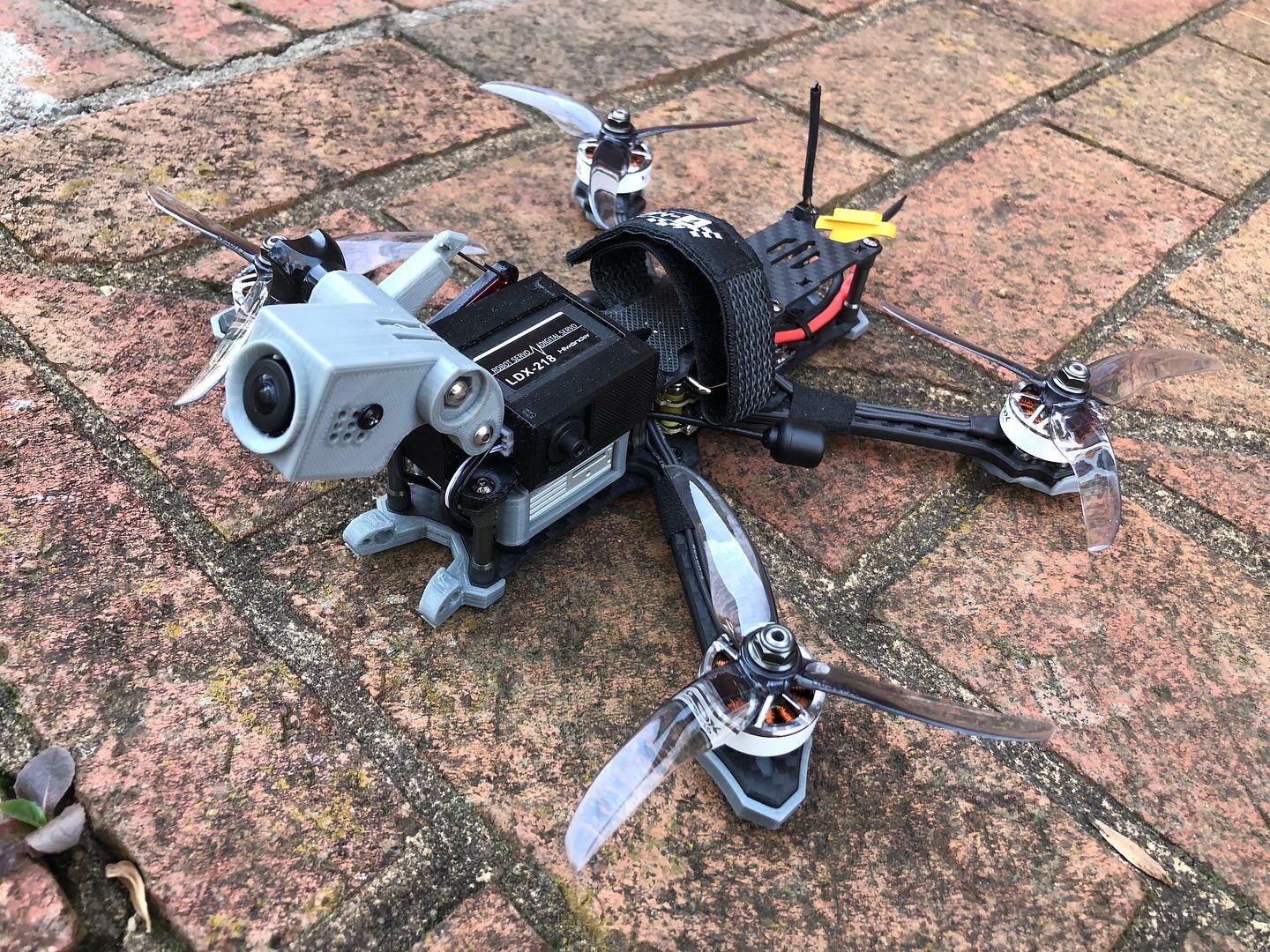

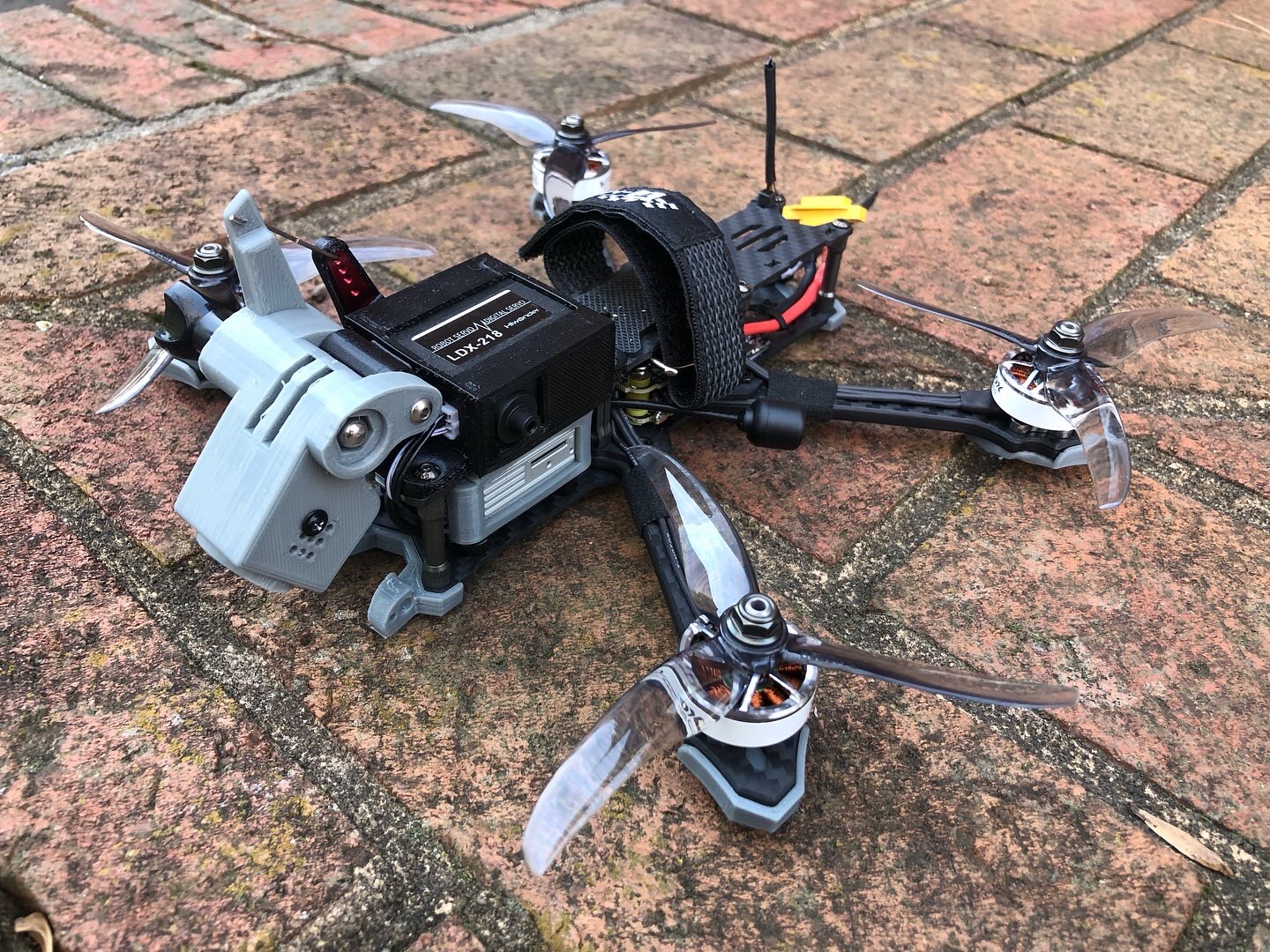

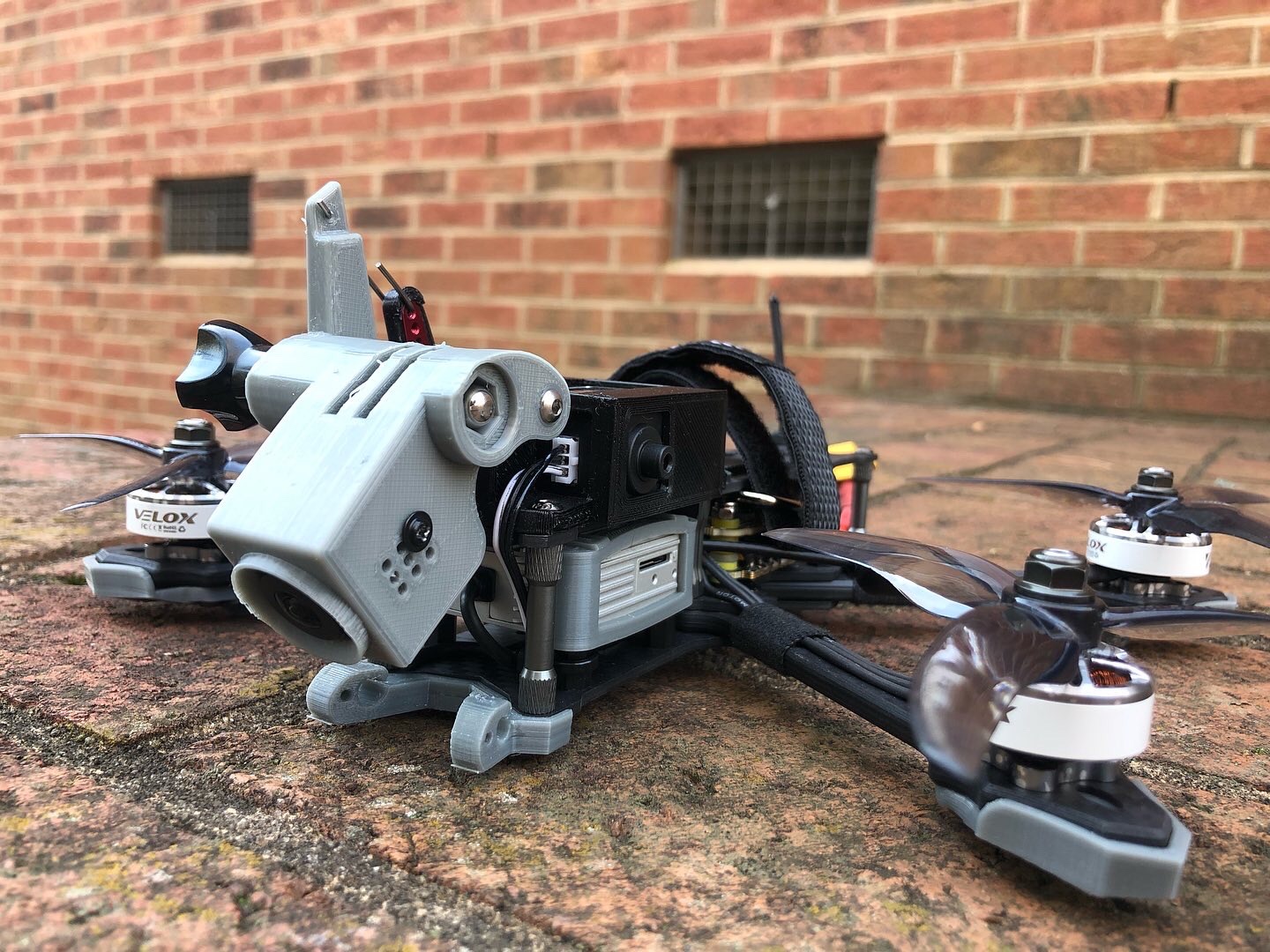

T-Motor FT5 MKII V2 HD – LDX-218 – Parametric Servo Gimbal

This is a customization of the parametric design for the T-Motor FT5 MKII V2 HD, I have chosen to reverse the drone and use the back as the front in order to not move the DJI Air Unit, but am including options for both normal and reverse orientation. My current design requires using a DJI camera extension cable, but it may be possible to use one of the camera mount options to not need to extend the cable, as this has a 20mm bearing housing.

Files on Thingiverse: https://www.thingiverse.com/thing:4986006
