FPV Gimbal – GEPRC Crocodile7 – LDX-218

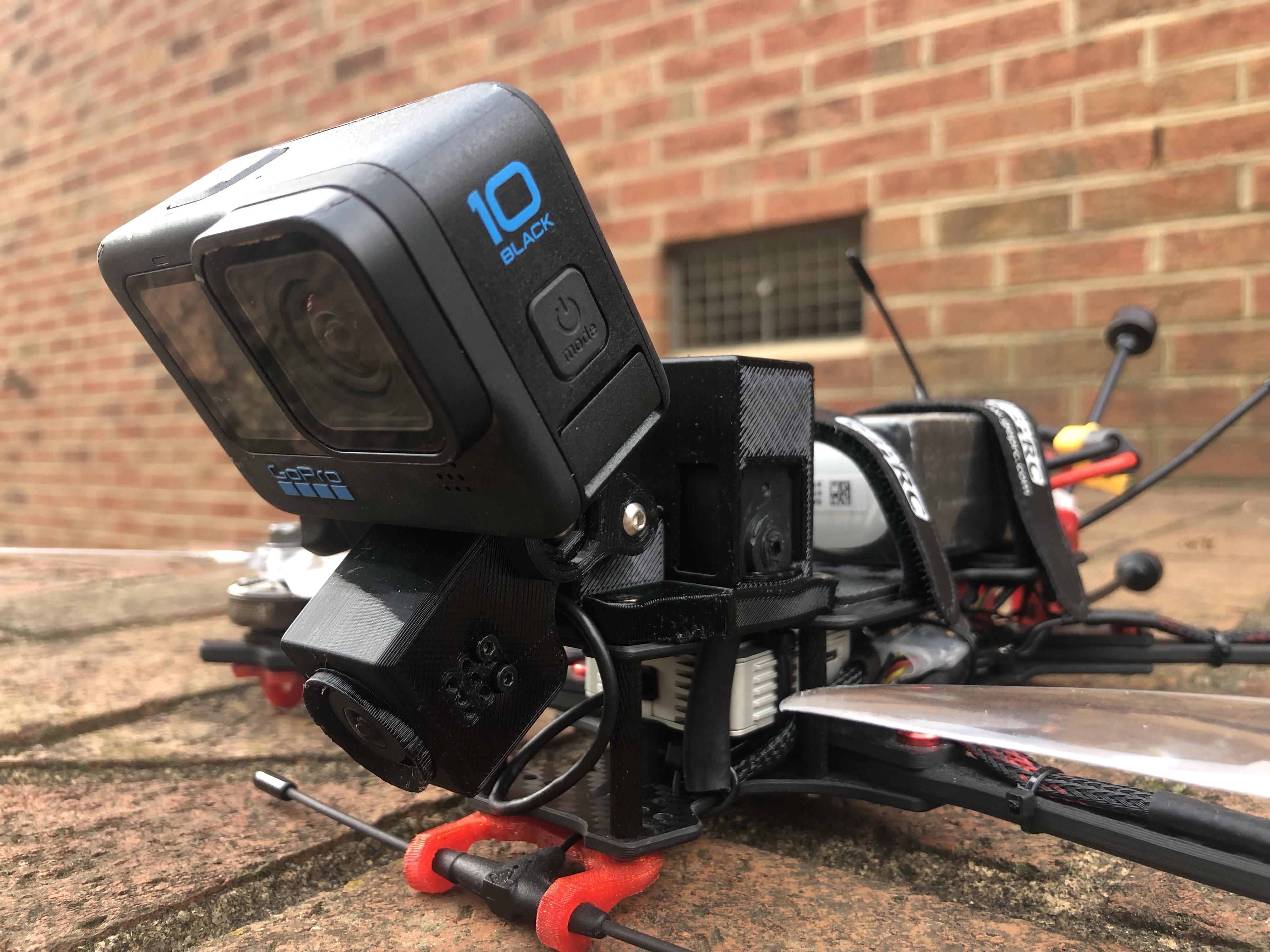

This design conserves space by putting the servo vertical such that the servo fits between all four screw holes while having them match the frame.

This design is for the base of the gimbal and is intended to be used with the Universal Camera Mount.

Guide for 3D printing the gimbal design here.

Files on Thingiverse: https://www.thingiverse.com/thing:5152279

Design commissioned by: Dominic Herrera

If the Universal Mount doesn’t work with this base or for your application this design is compatible with the 20mm GoPro/FPV Camera Mount Options:
https://www.thingiverse.com/thing:4983596
