Xilo JB Freestyle – LDX-218 – Parametric Servo Gimbal

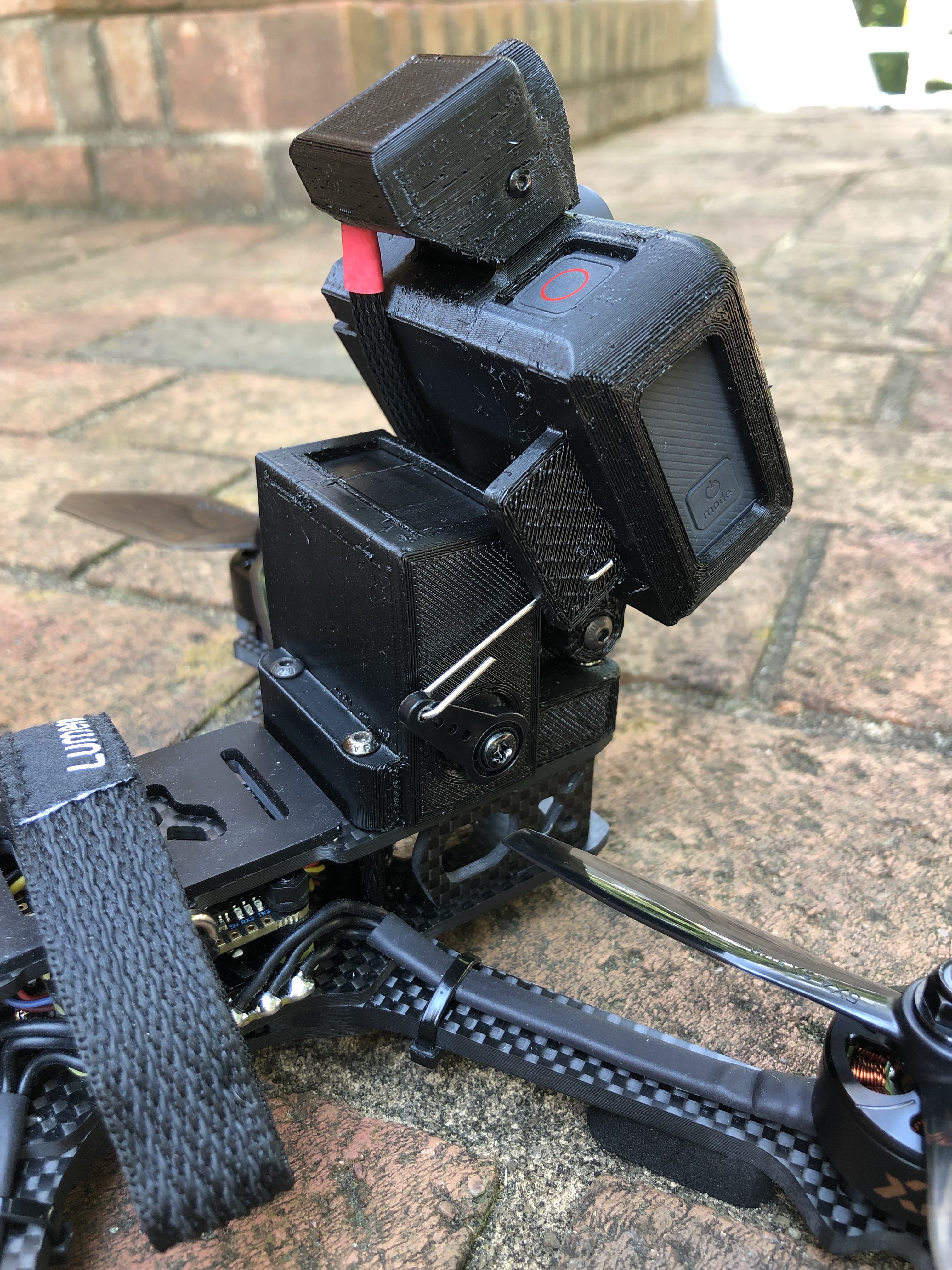

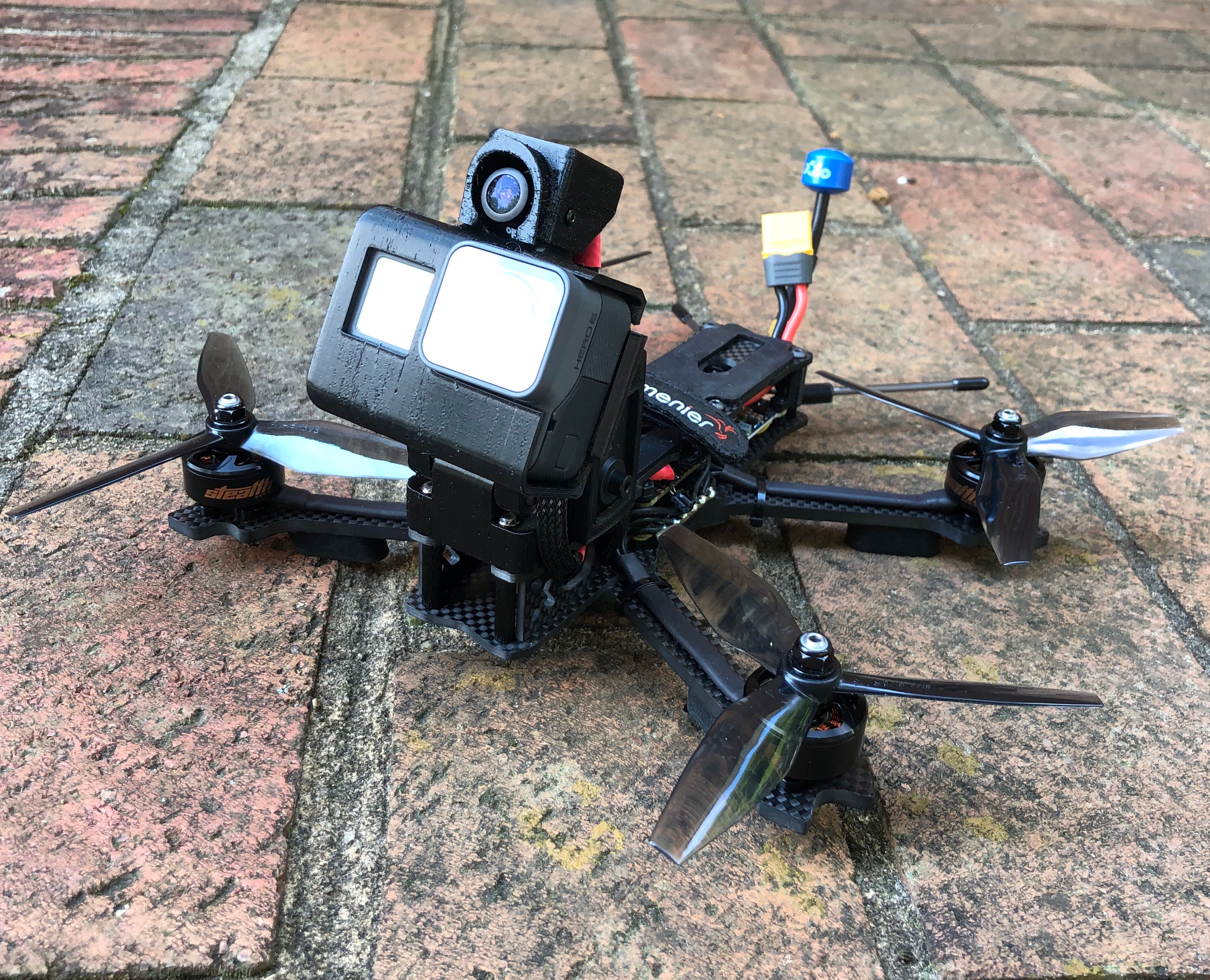

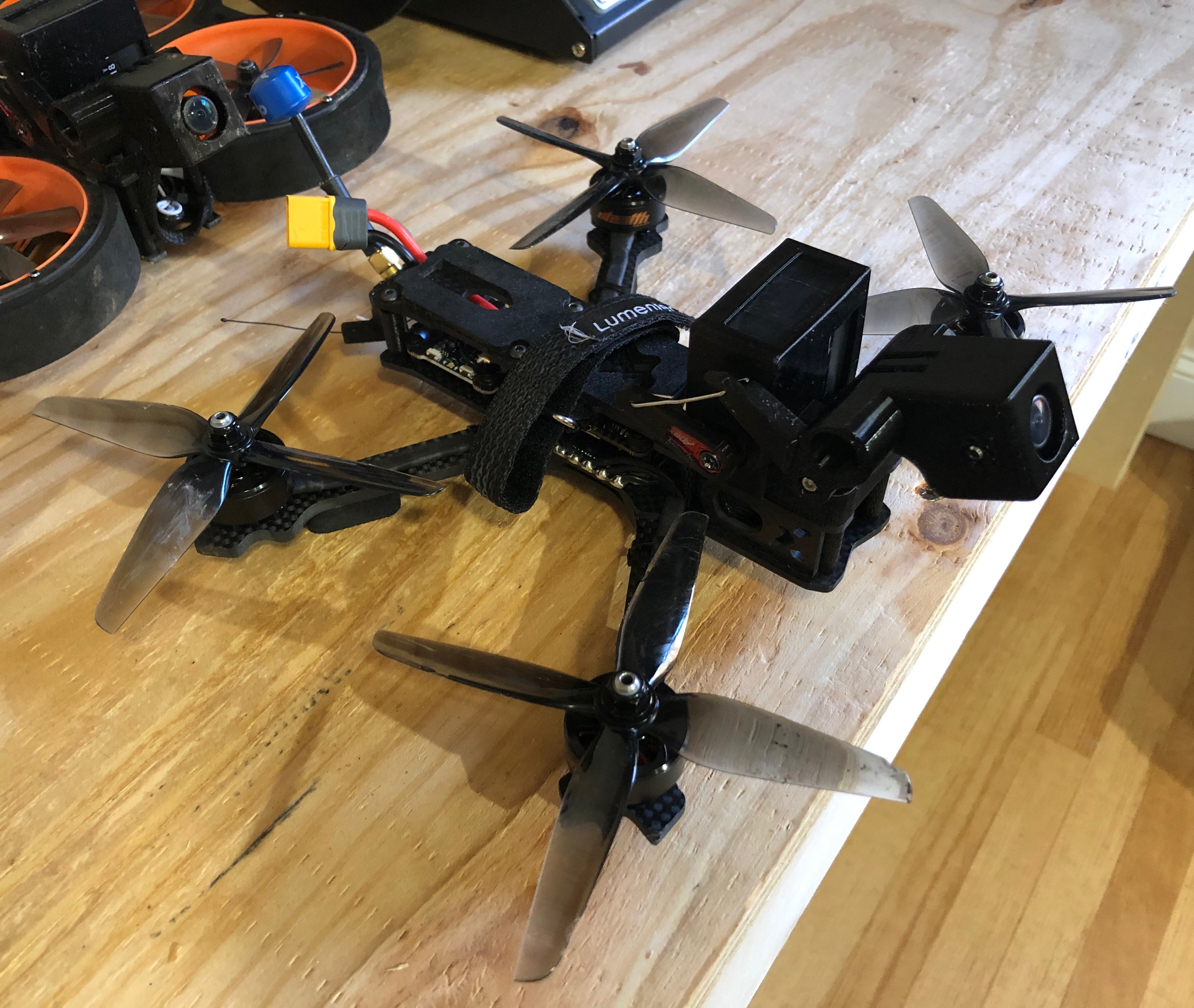

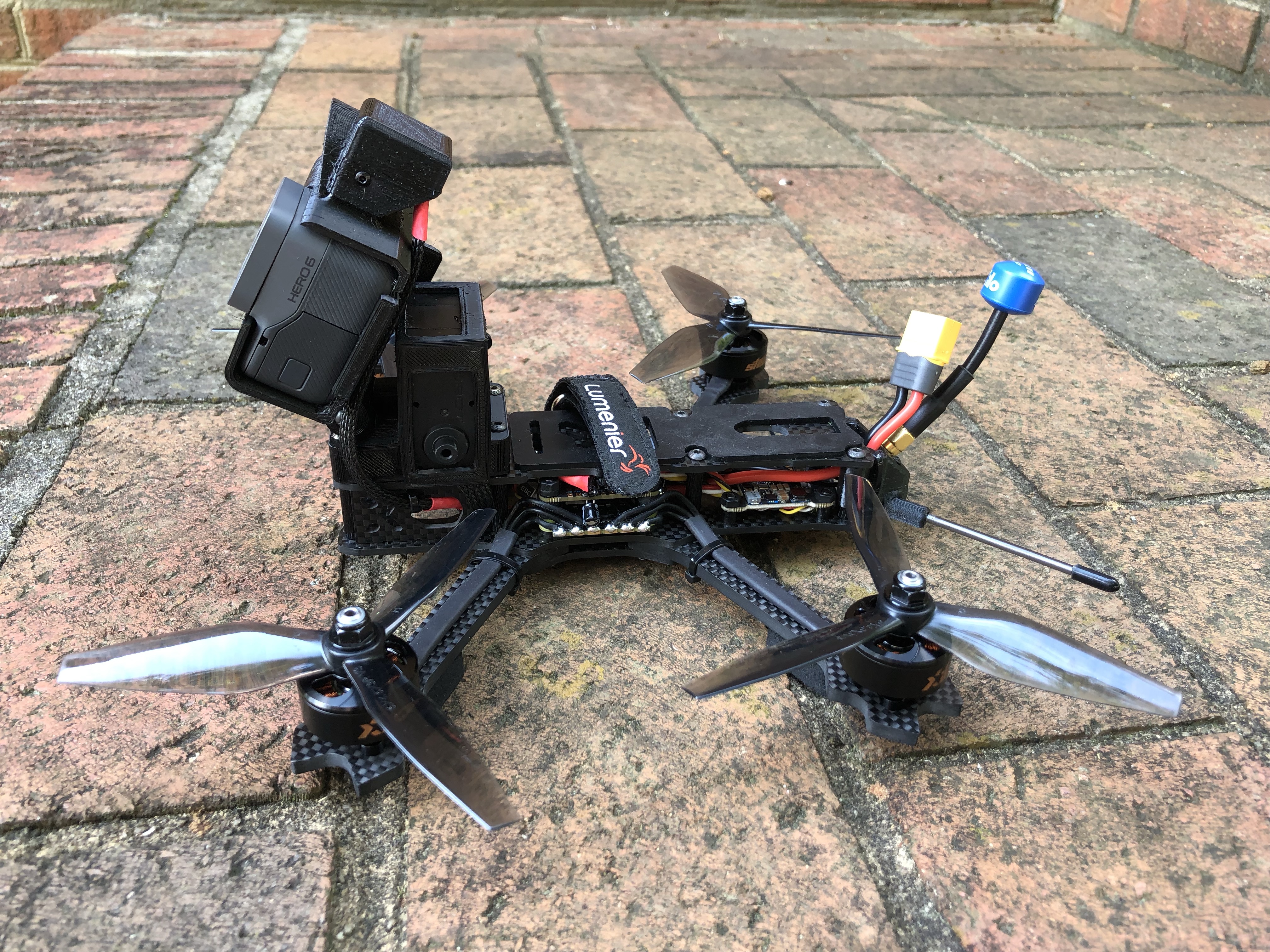

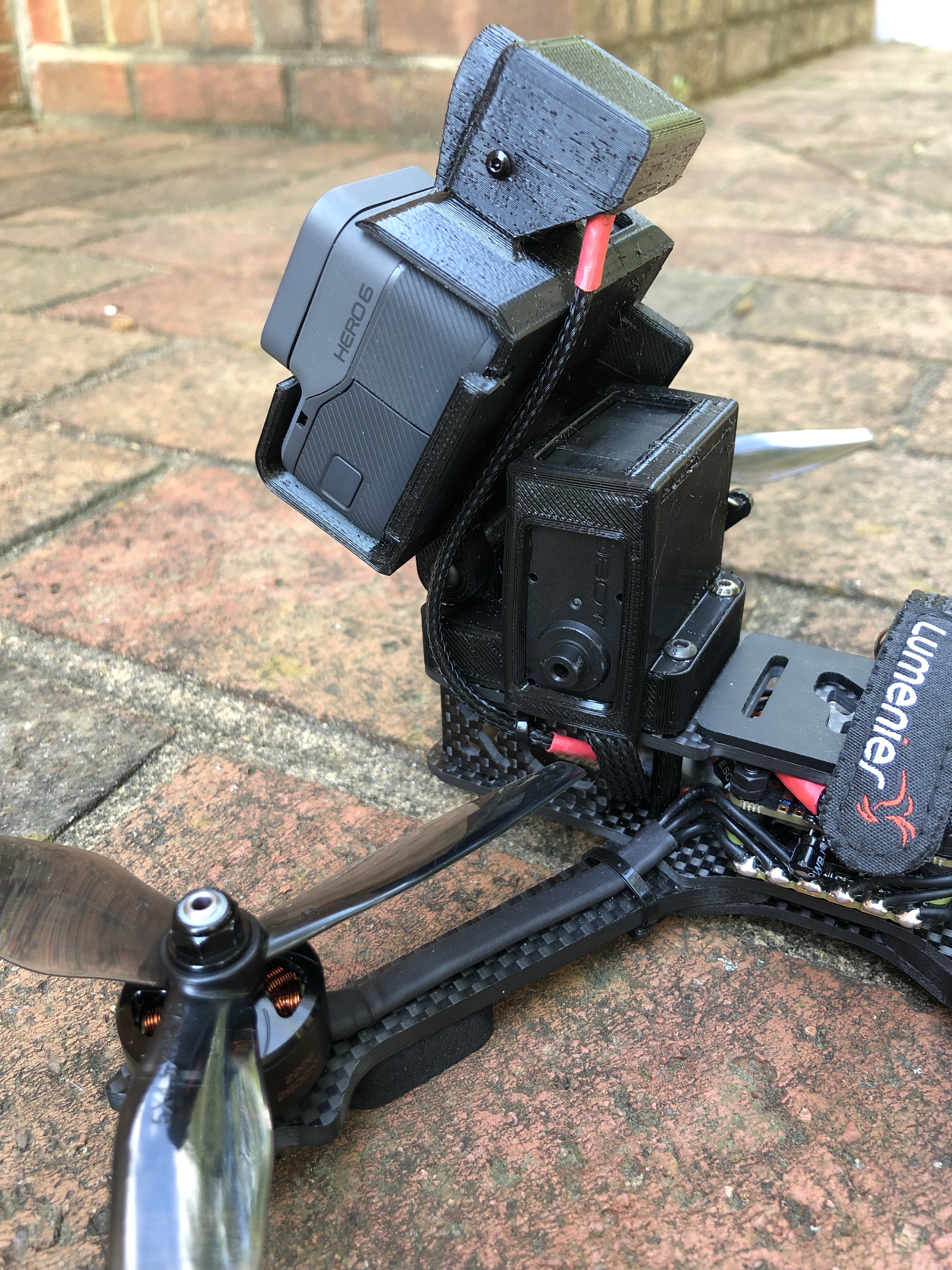

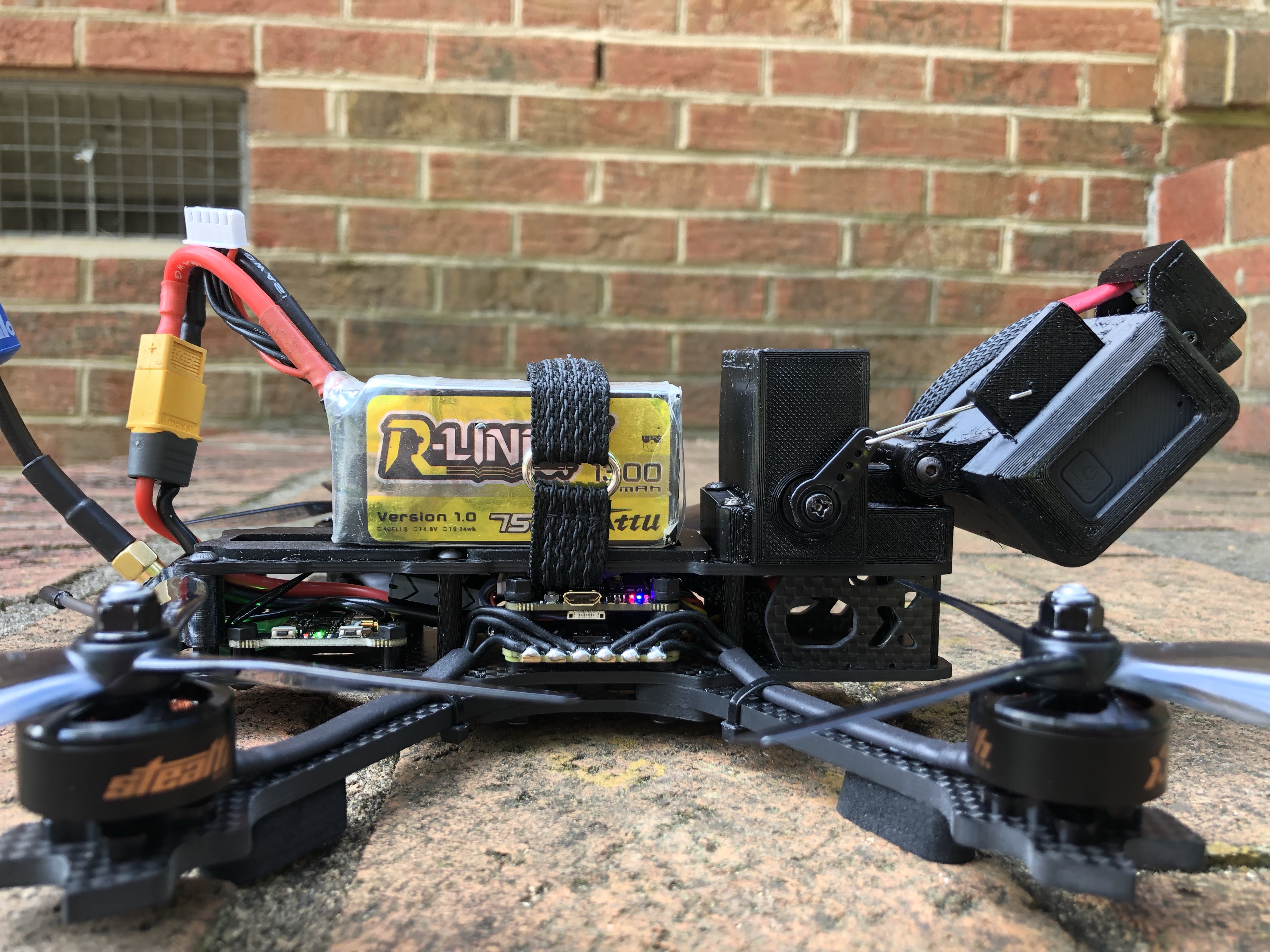

This is a customization of the parametric design that conserves space by putting the servo vertical such that the the servo fits between all four screw holes while having them match the frame. I also increased the base thickness so that the GoPro clears the propellers when looking down as this is a slammed frame and otherwise would have interference. The current output is only for Analog/Shark Byte and a Hero 5/6/7, however bellow are the dimensions that I entered into the spreadsheet of the parametric design to generate this model, this will allow you to customize and export designs for Hero 5/6/7, Hero 8, Hero 9/10, Analog, Shark Byte, and DJI FPV cameras options. This frame design forced this gimbal to use a 18mm bearing housing meaning it is not compatible with the standard camera mount options shown elsewhere on the site.

Files on Thingiverse: https://www.thingiverse.com/thing:4957898

The following is a link to a text file that contains the dimensions entered into the parametric design:
